WELCOME TO THE WORLD OF POWER MANAGEMENT IC
STK681-200-E
$0.00
(772)

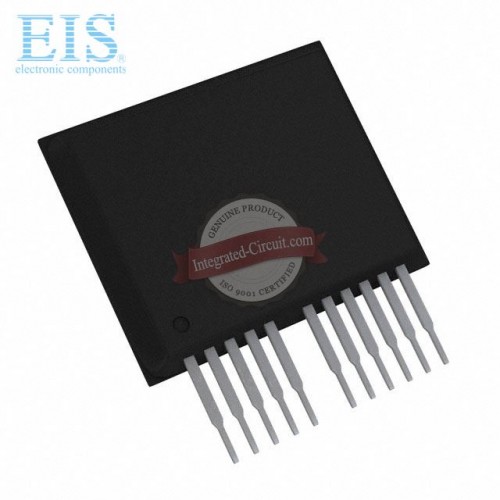

STK681-200-E
STK681-200-E
$0.00
We can ship to most of the country in the World.
Of course at a very low shipping cost, because we have a very good relationship for the discount.
We can ship by:
1. DHL
2. FEDEX
3. UPS
4. TNT
5. Normal Post
6. Any other shipping way you can choose.
Please Contact us for any questions about shipping:
sales@power-management-ic.com
Prepayment for new customer
1. Bank Transfer (Wire Transfer)
2. Paypal (You can use your credit card to pay by Paypal)
3. Western Union / Money Gram
If you have any questions about payment terms, you can feel free to contact us.
| Mfg. Part Number | STK681-200-E | |
| Manufacturer | ON Semiconductor | |
| Product Category | PMIC - Full, Half-Bridge Drivers | |
| Description | IC HYBRID MOTOR DRIVER 11SIP | |
| Datesheet Download | Download | |
| Internal Part Number | EIS-STK681-200-E | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 24/Jul/2015 | |
| Standard Package | 17 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Series | - | |
| Packaging | Tube | |
| Output Configuration | Half Bridge (2) | |
| Applications | DC Motors, General Purpose | |
| Interface | Logic | |
| Load Type | Inductive | |
| Technology | Power MOSFET, IGBT | |
| Rds On (Typ) | - | |
| Current - Output / Channel | 4.2A | |
| Current - Peak Output | - | |
| Voltage - Supply | 4.75 V ~ 5.25 V | |
| Voltage - Load | 10 V ~ 42 V | |
| Operating Temperature | 150°C (TJ) | |
| Features | - | |
| Fault Protection | - | |
| Mounting Type | Through Hole | |
| Package / Case | 12-SIP, 11 Leads | |
| Supplier Device Package | 12-SIP | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | STK681-200-E | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | STK681-200-E | |
| Related Links | STK681, STK681-200-E Datasheet, ON Semiconductor Distributor | |
