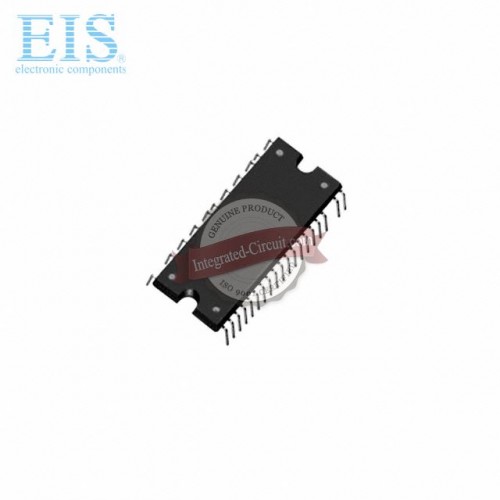

SIM6812M
$0.00
(1015)
SIM6812M
We can ship to most of the country in the World.
Of course at a very low shipping cost, because we have a very good relationship for the discount.
We can ship by:
1. DHL
2. FEDEX
3. UPS
4. TNT
5. Normal Post
6. Any other shipping way you can choose.
Please Contact us for any questions about shipping:
sales@power-management-ic.com
Prepayment for new customer
1. Bank Transfer (Wire Transfer)
2. Paypal (You can use your credit card to pay by Paypal)
3. Western Union / Money Gram
If you have any questions about payment terms, you can feel free to contact us.
| Mfg. Part Number | SIM6812M | |
| Manufacturer | Sanken | |
| Product Category | PMIC - Full, Half-Bridge Drivers | |
| Description | IC BRIDGE DRIVER PAR 40DIP | |
| Datesheet Download | Download | |
| Internal Part Number | EIS-SIM6812M | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 15 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Series | - | |
| Packaging | Tube | |
| Output Configuration | Half Bridge (3) | |
| Applications | AC Motors | |
| Interface | Logic | |
| Load Type | Inductive | |
| Technology | Power MOSFET | |
| Rds On (Typ) | 2 Ohm | |
| Current - Output / Channel | 2.5A | |
| Current - Peak Output | 3.75A | |
| Voltage - Supply | 13.5 V ~ 16.5 V | |
| Voltage - Load | 400V (Max) | |
| Operating Temperature | -20°C ~ 100°C (TA) | |
| Features | Bootstrap Circuit | |
| Fault Protection | Current Limiting, Over Temperature, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 40-DIP (0.657", 16.70mm) 29 Leads | |
| Supplier Device Package | 40-DIP LF2971 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | SIM6812M | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | SIM6812M | |
| Related Links | SIM6, SIM6812M Datasheet, Sanken Distributor | |
