Brand: Apex Microtechnology
Product Code: SA306AHU
Availability: 175
$0.00

We can ship to most of the country in the World.

Of course at a very low shipping cost, because we have a very good relationship for the discount.

We can ship by:

1. DHL

2. FEDEX

3. UPS

4. TNT

5. Normal Post

6. Any other shipping way you can choose.

Please Contact us for any questions about shipping:

sales@power-management-ic.com


Prepayment for new customer

1. Bank Transfer (Wire Transfer)

2. Paypal (You can use your credit card to pay by Paypal)

3. Western Union / Money Gram

If you have any questions about payment terms, you can feel free to contact us.

Mfg. Part NumberSA306AHU
ManufacturerApex Microtechnology
Product CategoryPMIC - Full, Half-Bridge Drivers

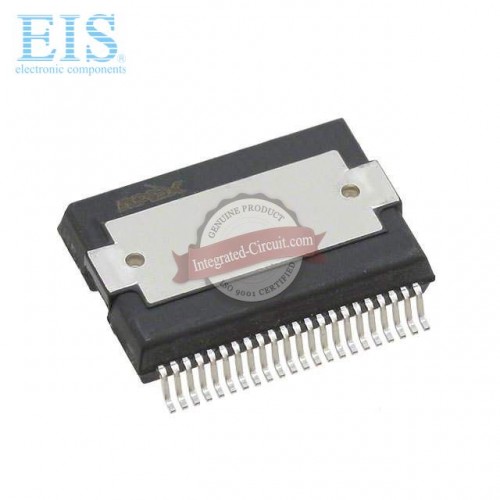

DescriptionIC MOTOR DRIVER PWM 44HSOP
Datesheet Download Download
Internal Part NumberEIS-SA306AHU
Lead Free Status / RoHS StatusLead free / RoHS Compliant
Moisture Sensitivity Level (MSL)3 (168 Hours)
Production Status (Lifecycle)In Production
ConditionNew & Unused, Original Sealed
Product Training ModulesPower Analog Portfolio
Standard Package1
Category Integrated Circuits (ICs)
FamilyPMIC - Full, Half-Bridge Drivers
SeriesApex Precision Power®
PackagingBulk
Output ConfigurationHalf Bridge (3)
ApplicationsDC Motors, General Purpose, Solenoids
InterfacePWM
Load TypeInductive
TechnologyDMOS
Rds On (Typ)250 mOhm LS, 300 mOhm HS
Current - Output / Channel8A
Current - Peak Output17A
Voltage - Supply4.5 V ~ 5.5 V
Voltage - Load9 V ~ 60 V
Operating Temperature-40°C ~ 150°C (TJ)
Features-
Fault ProtectionCurrent Limiting, Over Temperature, Shoot-Through, UVLO
Mounting TypeSurface Mount
Package / Case44-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package44-HSOP
Weight0.001 KG
ApplicationEmail for details
Alternative Part (Replacement)SA306AHU
Weight0.001 KG
ApplicationEmail for details
Alternative Part (Replacement)SA306AHU
Related LinksSA30, SA306AHU Datasheet, Apex Microtechnology Distributor
