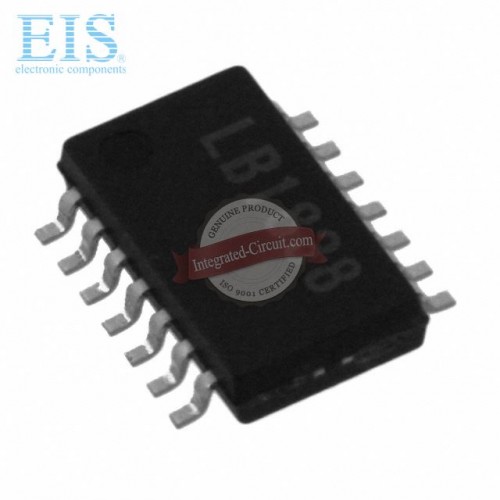

LB1863M-TLM-H

     0 reviews  |  Write a review
Brand: ON Semiconductor
Product Code: LB1863M-TLM-H
Availability: 1728
$0.00

We can ship to most of the country in the World.

Of course at a very low shipping cost, because we have a very good relationship for the discount.

We can ship by:

1. DHL

2. FEDEX

3. UPS

4. TNT

5. Normal Post

6. Any other shipping way you can choose.

Please Contact us for any questions about shipping:

sales@power-management-ic.com


Prepayment for new customer

1. Bank Transfer (Wire Transfer)

2. Paypal (You can use your credit card to pay by Paypal)

3. Western Union / Money Gram

If you have any questions about payment terms, you can feel free to contact us.

Mfg. Part NumberLB1863M-TLM-H
ManufacturerON Semiconductor
Product CategoryPMIC - Full, Half-Bridge Drivers
DescriptionIC MOTOR DRIVER ON/OFF 14MFP
Datesheet Download Download
Internal Part NumberEIS-LB1863M-TLM-H
Lead Free Status / RoHS StatusLead free / RoHS Compliant
Moisture Sensitivity Level (MSL)3 (168 Hours)
Production Status (Lifecycle)In Production
ConditionNew & Unused, Original Sealed
Product Training ModulesCooling Fan Motor Drivers
Standard Package1,000
Category Integrated Circuits (ICs)
FamilyPMIC - Full, Half-Bridge Drivers
Series-
PackagingTape & Reel (TR)
Output ConfigurationHalf Bridge (2)
ApplicationsDC Motors, General Purpose
InterfaceLogic
Load TypeInductive
TechnologyBipolar
Rds On (Typ)-
Current - Output / Channel1.5A
Current - Peak Output-
Voltage - Supply6.4 V ~ 7 V
Voltage - Load24V
Operating Temperature-30°C ~ 80°C (TA)
Features-
Fault ProtectionOver Temperature
Mounting TypeSurface Mount
Package / Case14-LSOP (0.173", 4.40mm Width)
Supplier Device PackageMFP14S
Weight0.001 KG
ApplicationEmail for details
Alternative Part (Replacement)LB1863M-TLM-H
Weight0.001 KG
ApplicationEmail for details
Alternative Part (Replacement)LB1863M-TLM-H
Related LinksLB1863, LB1863M-TLM-H Datasheet, ON Semiconductor Distributor
