WELCOME TO THE WORLD OF POWER MANAGEMENT IC

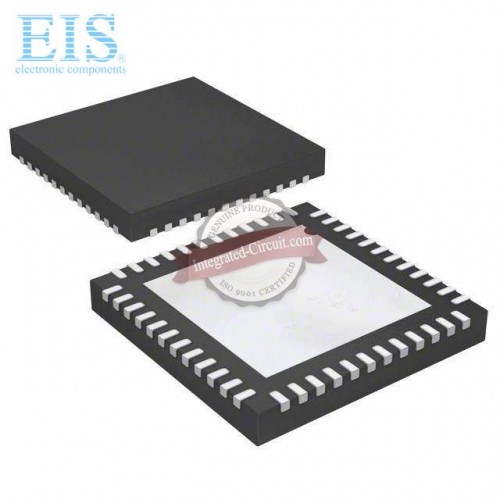

L6207QTR
$0.00
(713)
L6207QTR
We can ship to most of the country in the World.
Of course at a very low shipping cost, because we have a very good relationship for the discount.
We can ship by:
1. DHL
2. FEDEX
3. UPS
4. TNT
5. Normal Post
6. Any other shipping way you can choose.
Please Contact us for any questions about shipping:
sales@power-management-ic.com
Prepayment for new customer
1. Bank Transfer (Wire Transfer)
2. Paypal (You can use your credit card to pay by Paypal)
3. Western Union / Money Gram
If you have any questions about payment terms, you can feel free to contact us.
| Mfg. Part Number | L6207QTR | |
| Manufacturer | STMicroelectronics | |
| Product Category | PMIC - Full, Half-Bridge Drivers | |
| Description | IC MOTOR DRIVER PAR 48VFQFPN | |
| Datesheet Download | Download | |
| Internal Part Number | EIS-L6207QTR | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | L6207Q View All Specifications | |
| Reference Design Library | EVAL6207N: Stepper and DC Motor Driver Board | |
| Standard Package | 2,500 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Half Bridge (4) | |
| Applications | DC Motors, Stepper Motors, Voltage Regulators | |
| Interface | Logic | |
| Load Type | Inductive | |
| Technology | DMOS | |
| Rds On (Typ) | 280 mOhm LS, 340 mOhm HS | |
| Current - Output / Channel | 2.5A | |
| Current - Peak Output | 5.6A | |
| Voltage - Supply | 8 V ~ 52 V | |
| Voltage - Load | 8 V ~ 52 V | |
| Operating Temperature | -25°C ~ 125°C (TJ) | |
| Features | Bootstrap Circuit | |
| Fault Protection | Current Limiting, Over Temperature, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | 48-VFQFN Exposed Pad | |
| Supplier Device Package | 48-VFQFPN (7x7) | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | L6207QTR | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | L6207QTR | |
| Related Links | L620, L6207QTR Datasheet, STMicroelectronics Distributor | |
