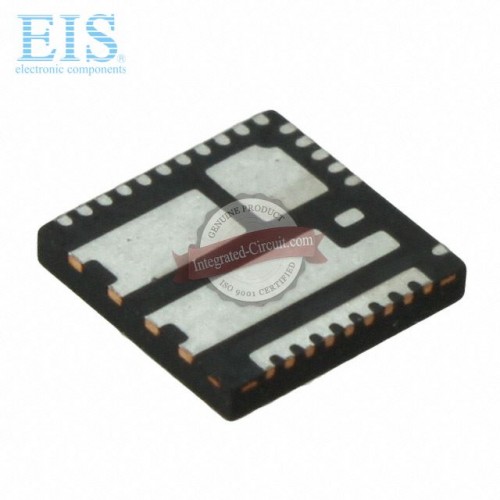

IR3550MTRPBF

     0 reviews  |  Write a review
Brand: International Rectifier (Infineon Technologies Americas Corp.)
Product Code: IR3550MTRPBF
Availability: 6000
$0.00

We can ship to most of the country in the World.

Of course at a very low shipping cost, because we have a very good relationship for the discount.

We can ship by:

1. DHL

2. FEDEX

3. UPS

4. TNT

5. Normal Post

6. Any other shipping way you can choose.

Please Contact us for any questions about shipping:

sales@power-management-ic.com


Prepayment for new customer

1. Bank Transfer (Wire Transfer)

2. Paypal (You can use your credit card to pay by Paypal)

3. Western Union / Money Gram

If you have any questions about payment terms, you can feel free to contact us.

Mfg. Part NumberIR3550MTRPBF
ManufacturerInternational Rectifier (Infineon Technologies Americas Corp)
Product CategoryPMIC - Full, Half-Bridge Drivers
DescriptionIC DRIVER GATE 60A PQFN
Datesheet Download Download
Internal Part NumberEIS-IR3550MTRPBF
Lead Free Status / RoHS StatusLead free / RoHS Compliant
Moisture Sensitivity Level (MSL)3 (168 Hours)
Production Status (Lifecycle)In Production
ConditionNew & Unused, Original Sealed
Product Training ModulesSmall PowIR MOSFETS Value Proposition
High Voltage Integrated Circuits (HVIC Gate Drivers)
Featured ProductIR3550 / IR3553 Integrated PowIRstage™
PCN Assembly/OriginPowlRstage Backend Wafer Processing 23/Oct/2013
Additional Assembly/Test Site 30/Apr/2014
PCN OtherMultiple Changes 28/Jan/2014
Standard Package3,000
Category Integrated Circuits (ICs)
FamilyPMIC - Full, Half-Bridge Drivers
SeriesPowIRstage®
PackagingTape & Reel (TR)
Output ConfigurationHalf Bridge
ApplicationsSynchronous Buck Converters, Voltage Regulators
InterfacePWM
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)-
Current - Output / Channel60A
Current - Peak Output90A
Voltage - Supply4.5 V ~ 7 V
Voltage - Load4.5 V ~ 15 V
Operating Temperature-40°C ~ 125°C (TJ)
FeaturesBootstrap Circuit, Diode Emulation, Status Flag
Fault ProtectionOver Temperature, Shoot-Through, UVLO
Mounting TypeSurface Mount
Package / Case32-VFQFN Exposed Pad
Supplier Device Package32-PQFN (6x6)
Weight0.001 KG
ApplicationEmail for details
Alternative Part (Replacement)IR3550MTRPBF
Weight0.001 KG
ApplicationEmail for details
Alternative Part (Replacement)IR3550MTRPBF
Related LinksIR3550, IR3550MTRPBF Datasheet, International Rectifier (Infineon Technologies Americas Corp) Distributor
