WELCOME TO THE WORLD OF POWER MANAGEMENT IC

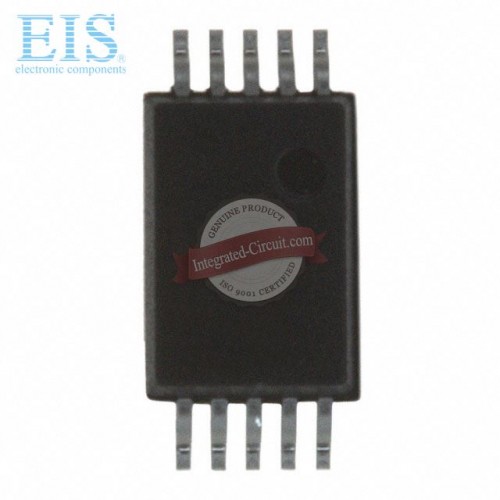

AN8013SH-E1
$0.00
(1137)
AN8013SH-E1
AN8013SH-E1
$0.00
We can ship to most of the country in the World.
Of course at a very low shipping cost, because we have a very good relationship for the discount.
We can ship by:
1. DHL
2. FEDEX
3. UPS
4. TNT
5. Normal Post
6. Any other shipping way you can choose.
Please Contact us for any questions about shipping:
sales@power-management-ic.com
Prepayment for new customer
1. Bank Transfer (Wire Transfer)
2. Paypal (You can use your credit card to pay by Paypal)
3. Western Union / Money Gram
If you have any questions about payment terms, you can feel free to contact us.
| Mfg. Part Number | AN8013SH-E1 | |
| Manufacturer | Panasonic Electronic Components | |
| Product Category | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Description | IC REG BCK BOOST ADJ 50MA 10SSOP | |
| Datesheet Download | Download | |
| Internal Part Number | EIS-AN8013SH-E1 | |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | |
| Moisture Sensitivity Level (MSL) | ||
| Production Status (Lifecycle) | Obsolete / Discontinued | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 2,000 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Function | Step-Up, Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck, Boost | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 3.6V | |
| Voltage - Input (Max) | 34V | |
| Voltage - Output (Min/Fixed) | 3.6V | |
| Voltage - Output (Max) | 34V | |
| Current - Output | 50mA | |
| Frequency - Switching | 20kHz ~ 500kHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -30°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-FSOP (0.169", 4.30mm Width) | |
| Supplier Device Package | 10-SSOP | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | AN8013SH-E1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | AN8013SH-E1 | |
| Related Links | AN801, AN8013SH-E1 Datasheet, Panasonic Electronic Components Distributor | |
